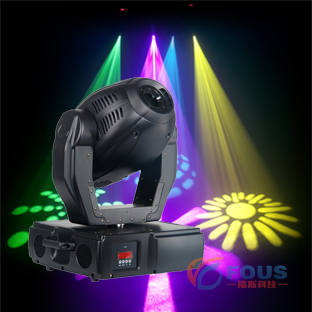

Theatre Lighting / 16CH 575W Moving Head Spot / Spot Moving Head / 575W Moving Head Lighting

TECHNICAL INFO

>Voltage:
   AC100-120V/60Hz(America Type)
   AC220-250V/50Hz(Europe Type)
>Power Consumption: 700Watt
>Lamp: (order) PHILIPS MSR 575W discharge lamp
>Color Temperature: 6500°K
>Socket: GX9.5
>Manufacturers Rated Lamp Life: 750 Hours
>Channel: 16 CHs
>Control: DMX512
>Colors: wheel with 7 fixed Diachronic colors plus white
        with variable speed bi-directional rainbow effect
>Gobos: (double gobo wheel)
- Rotating gobo wheel :
4 interchangeable gobos + white, bi-directionally rotating at variable speeds.
- Fixed gobo wheel:
5 interchangeable gobos + white, the fixed gobo wheel can scroll in either direction at variable speeds.
>Prism: 3 facet, bi-directional rotation at variable speeds
>Focus: electric linear focus:18-32°
>Water Effect Wheel: with variable speed bi-directional plus white
>Shutter: double shutter blades, 0-100% linearly adjustable
>Dimmer: electric linear dimming
>IRIS: adjustable electric iris,10-100%,adjust the beam small to big.
>Zoom: in and out adjustable
>Head Movement: Pan 450°, Tilt 270° .Pan & Tilt speed adjustable.
>Pan & Tilt rotation resolution: 16bit
>Dimension: L530*W520*H660MM
>Weight: 38Kg

Channel List:
CH1 strobe/open/closed beam
CH2 Dimmer
CH3 Pan
CH4 Tilt
CH5 Pan fine
CH6 Tilt fine
CH7 Color wheel
CH8 Water Wave lens
CH9 Fixed gobo wheel
CH10 Rotate gobo wheel
CH11 Gobo rotation
CH12 Iris
CH13 Zoom
CH14 Prism
CH15 Prism rotation
CH16 Reset
