575W Moving Head Wash from China manufacturer - Fous Electronic Technology Co., Ltd

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FS-M2001

Production Capacity: 5000pcs/month

Delivery Date: within 15 days

Means of Transport: Ocean,Land,Air

Packing: Master Carton

Brand Name: FOUS

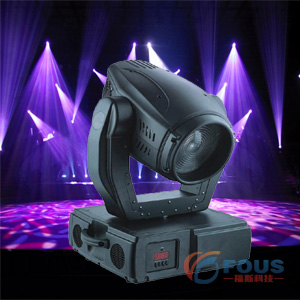

575W Moving Head Wash
1. MOQ: 1PC
2. Meet CE standard
3. Master carton or flight case packing
4. Light on stage: 575W wash moving head

Theatre Lighting / 16CH 575W Moving Head Wash / Moving Head Wash Lighting

TECHNICAL INFO

FOCUS SPEC.:
> LAMP: (order)PHILIPS MSR 575W discharge lamp
> Channel: 16 CHs
> Control: DMX512
> Color Temperature: 6500oK
> Socket: GX 9.5
> Manufacturers Rated Lamp Life: 750 Hours
> Color: CMY color mixing system
   color wheel with 7 fixed Diachronic colors plus white
   with variable speed bi-directional rainbow effect
> Color Temperature Correction:
   wheel 2 with 2 color temperature correction filters,3 fixed Diachronic colors plus white
   with variable speed bi-directional rainbow effect
> Shutter: double shutter blades, 0-100% linearly adjustable
> IRIS: adjustable electric iris,10-100%,adjust the beam small to big.
> Head Movement: Pan 540°, Tilt 270°.Pan & Tilt speed adjustable.
> Pan & Tilt rotation resolution: 16bit

BASIC SPEC.:
> Voltages:
- AC100-120V/60Hz(America Type)
- AC220-250V/50Hz(Europe Type)
> Power Consumption: 680Watt
> Dimension: L530*W520*H660 MM
> Weight: 33 kg

Channel List:
CH 1 : strobe/open/closed beam
CH 2 : Dimmer
CH 3 : PAN
CH 4 : TILT
CH 5 : Pan fine
CH 6 : Tilt fine
CH 7 : Pan/Tilt speed
CH 8 : Color Temperature
CH 9 : Iris Pan/Tilt speed
CH 10: Color wheel
CH 11: C1(Cyan)
CH 12: M2(Magenta)
CH 13: Y3(Yellow)
CH 14: CMY Mixed-color
CH 15: CMY speed
CH 16: Reset
